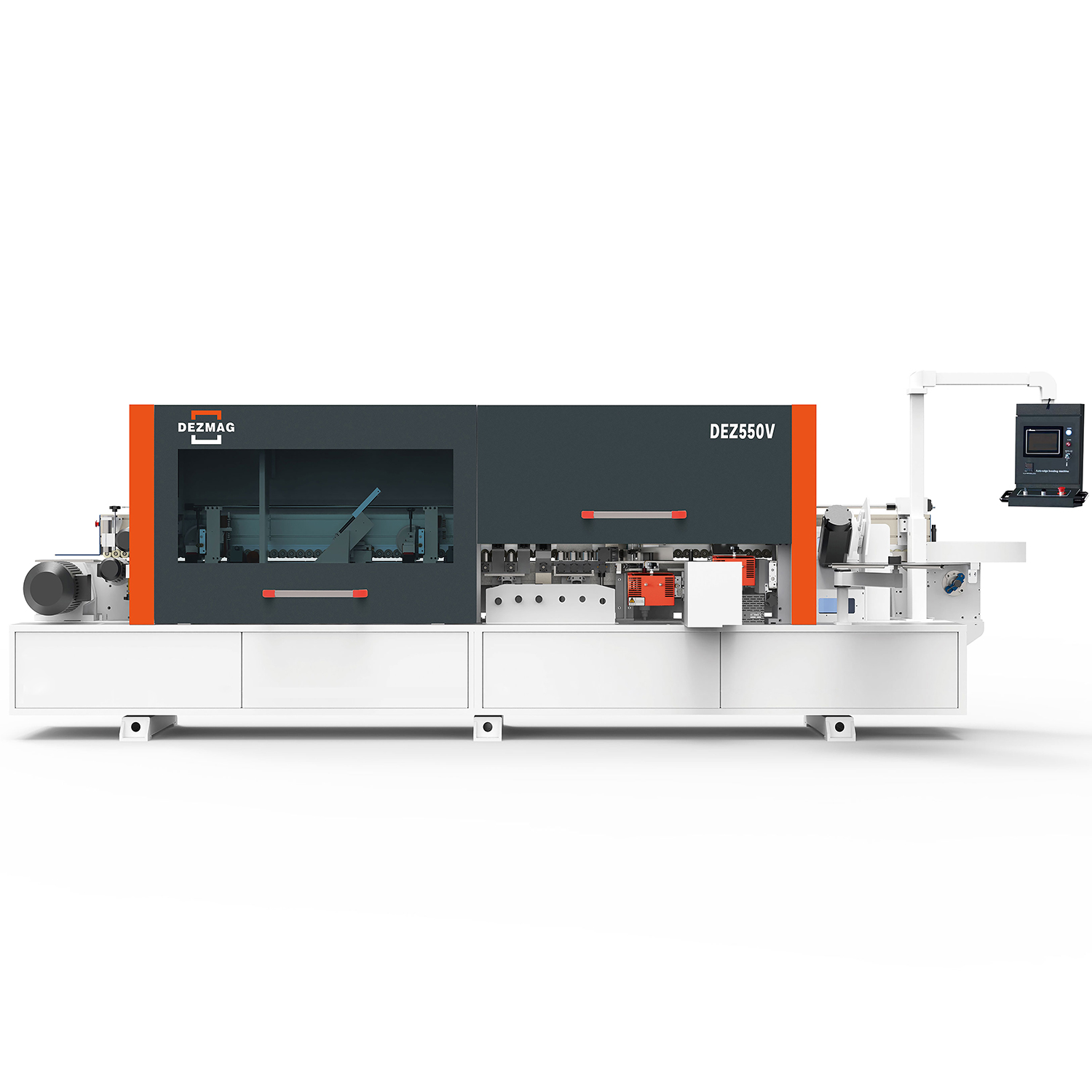

DEZ550VN edge banding machine
DEZ550VN edge banding machine
Functions
Vertical per-milling - Incline pre-milling - Vertical Gluing - Edge tape grooving - Incline Gluing - Edge tape pressing and snipping - End trimming - Rough trimming - Fine trimming - Scraping 1 - Scraping 2 - Buffing.
Technical Parameter
Feed speed | 0 - 20 m/min |
Straight edge banding tape thickness | 0.4 - 3 mm |
Tilt edge banding thickness | 1 - 2 mm |
Panel length | ≥200 mm |
Panel width | ≥150 mm |
Panel thickness | 10 - 30 mm |
Working air pressure | 0.6 Mpa |
Motor power | 18.6 kw |
Voltage | 380V 50Hz (Optional) |
Weight | 2700 kg |
Dimension | 7100×900×1800 mm |
